Harvia WHP1500 Sauna Chimney Kit (Slanted Roof)

Compatible with all Harvia wood burning sauna stoves. Designed to be used with a slanted roof.

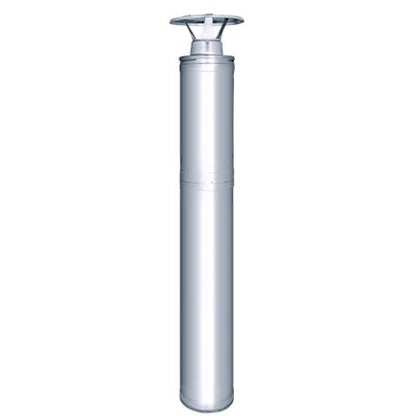

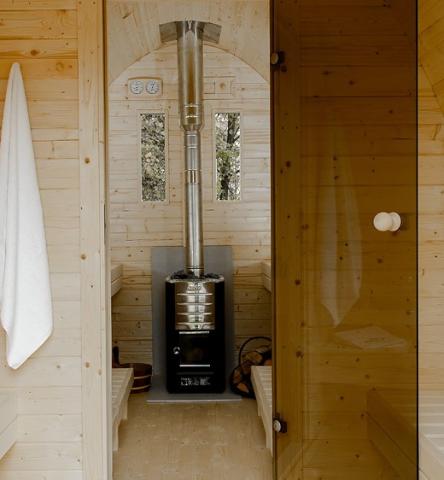

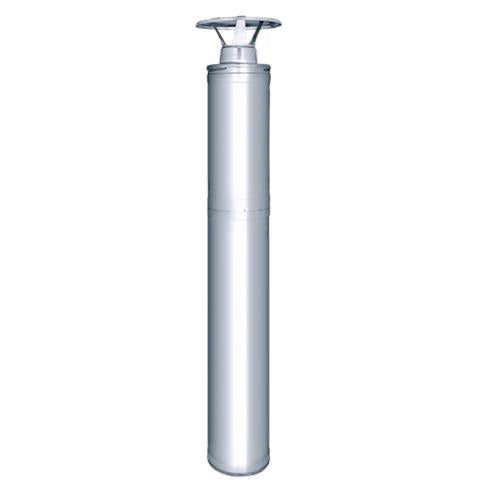

The Harvia stainless steel chimney is an easy-to-install stylish chimney solution. The steel chimney withstands extensive changes in temperature and has mainly been designed for use with wood burning stoves, smaller fireplaces, and iron stoves in detached sauna buildings.

Indoors, the chimney can be installed up to a height of 9' 8" without support and outdoors the corresponding self-supported installation height is 6' 6".

The rated maximum temperature of combus­tion gases for a furnace connected to a steel chimney is 600 ºC. The external diameter of the steel chimney is 8.66" and the diameter of the smoke pipe is 4.53". The safety distance to inflammable materials is 3.94". The Harvia steel chimney has a CE-marking, so the product complies with all international fire- and operational safety requirements. The steel chimney is sootfire proof.

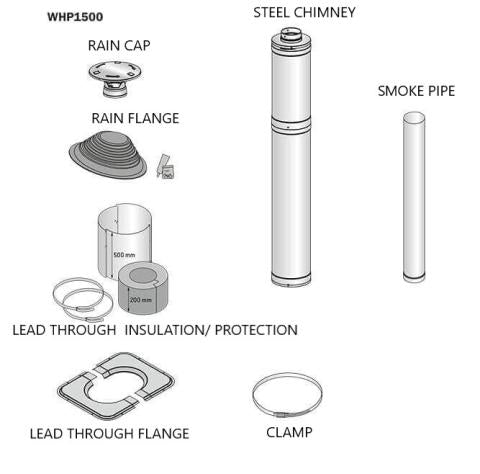

Included With Purchase:

• Stainless steel chimney
• Utility box
• Non-insulated smoke pipe
• Rain cap
• Rubber rain flange
• Installation set for rain flange
• Stainless steel lead-through flange for ceiling
• Lead-through insulation and protector
• Installation Manual
